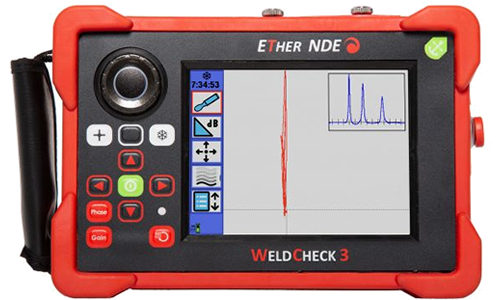

Joining the AeroCheck and WeldCheck family is the ETherCheck (Combined EC and Acoustic Bond Testing), the SteelCheck (MFL Carbon Steel ID Tube Tester), PhaseCheck (Eddy Current C-Scan Inspection Unit with dual probe capability) and AmCheck (developed with the Additive Manufacturing industry in mind).

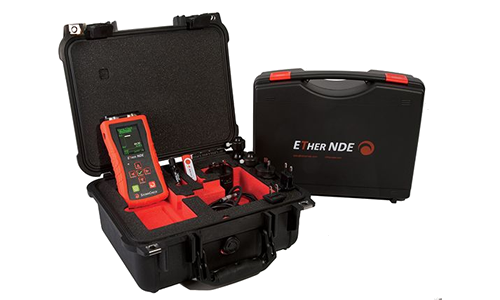

Conductivity is widely used to indicate material type and determine the state of heat treatment. In order to give accurate readings the SigmaCheck uses a three-point reference method. The first measurement with the probe in the air and then two further measurements are required which span the range of interest.

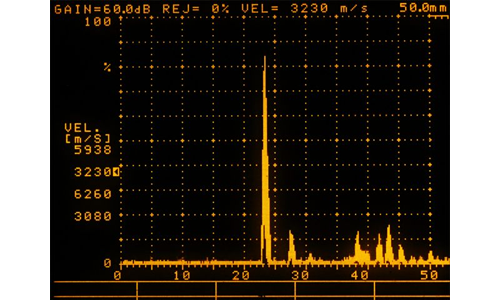

While most tests involve steel and other structural metals, flaw detectors can also be used on plastics, composites, fibreglass, and ceramics.

Baugh and Weedon work in close partnership with manufacturers in the Ultrasonic NDT sector and we are able to source equipment and experts were required.

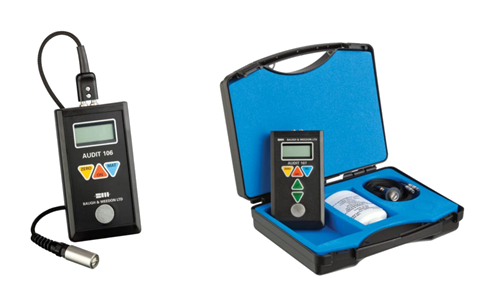

Audit 106

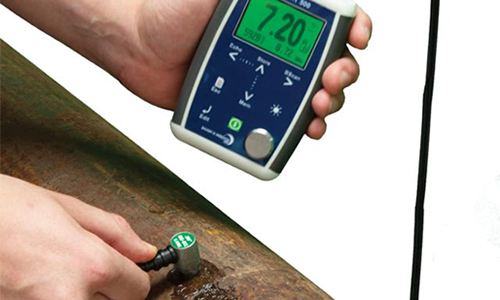

Our Audit range of thickness gauges provide operators with a combination of accuracy, robustness and simplicity of operation, across a very broad range of industry sectors and applications, often seems as essential tools in the kit for the Plant Maintenance Engineer or Engineering Surveyor.

Advantages of the Audit 106 include:

• Built in warning display eliminates risk of spurious readings
• 10 pre-set calibrations for commonly inspected materials

The Audit 106 is exceptionally tough, housed in a rigid hermetically sealed ABS case, with a front panel membrane ensuring excellent environmental protection. From pipelines to pressure vessels, tubes to tankers, castings to casings, boilers to bunkers, the Audit series is ideal an ideal on-site instrument to measure abrasion wear rates, rates of corrosion, aid in predictive maintenance scheduling and assess working plan without the need to shutdown.

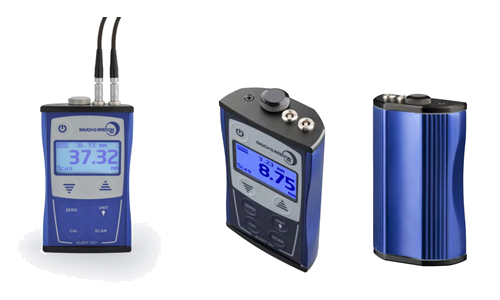

Audit 207

The Audit 207 UT Thickness Gauge is designed with measurement accuracy and durability in mind, ideal for the most hazardous of inspection environments.

Advantages of the Audit 106 include:

• The Audit 207 displays the current thickness of the area "live" as it scans, but also displays the thinnest measurement found
• Sealed Tactile-Feedback keys, ideal for gloved operation
• Ergonomically designed for easy one handed operation

Excelling in both ergonomic design and technical capability, the Audit 207 gives precise measurement results with excellent stability, whilst being housed in a rugged and tough case design. We have such confidence in the AUDIT 207 that we offer it with a Five-Year Conditional Warranty as standard.

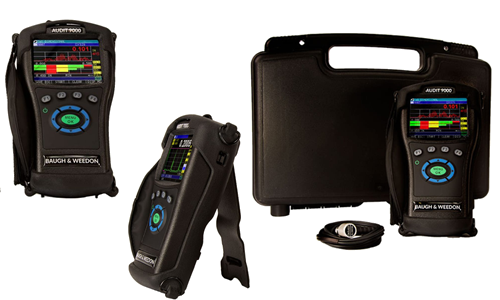

Audit 9000

The Audit 9000 is an ultrasonic corrosion thickness gauge and is available in four models to suit budget and application.

Advantages of the Audit 106 include:

• Field upgradeable software options including live waveform, datalogger or both
• Coating Thickness Software option
• Vibrate Alarm
• Encoder option
• Accessory Mount

The Audit 9000 represents our most advanced thickness gauge ever, offering a 3.5", high resolution, sunlight readable colour display with live A-Scan, echo to echo to ignore coatings. A wide variety of contact, delay line and immersion probes, are available, from 1-20 MHz as default, with the capability of creating custom and stored application setups. B-Scan and Datalogger functions are optional, with up to 32GB of SD card memory and can be interfaced to Microsoft Excel. The vibrate on alarm feature is a great feature for when working in noisy environments.

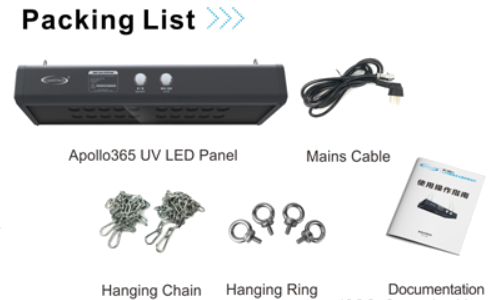

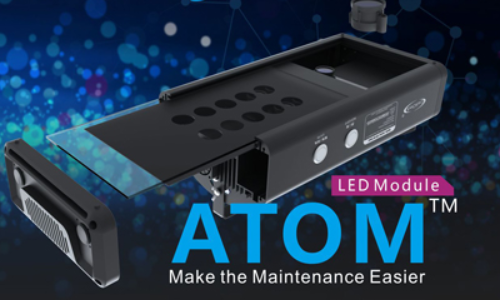

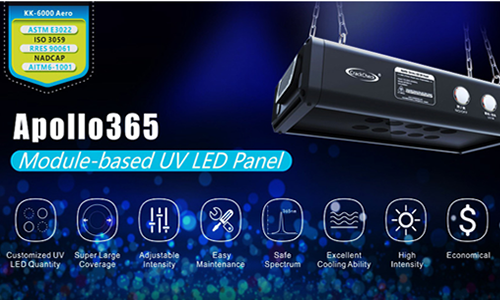

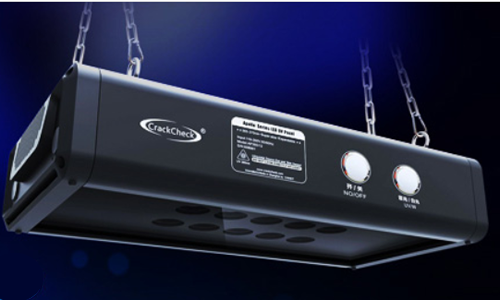

Apollo365 series LED UV panel abandons the design of many LEDs welded on the same board in series. Each LED of Apollo365 is encapsulated as an independent unit - ATOM . ATOM Flood and ATOM Spot are interchangalbe to make your preferred Apollo365/L with the desired UV intensity and coverage area. Besides, the electrical board is 5-levels adjustable, which offers you more intensity possibilities.

Features:

• Instant maximum output without pre-heating.
• Switch function between UV light and white light.
• LED module-based design with excellent maintainability.
• Safe and pure UV-A centering at 365nm.
• UV filter ensuring visible light less than 5 Lux.
• Horizontally and longitudinally expandable with standard connectors.
• 100% solid state circuit ensuring working properly in strong magnetic field

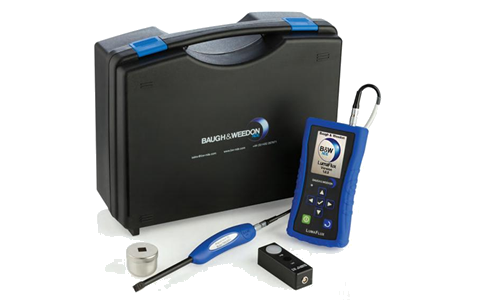

Features:

• Two instruments in one allowing you to save on purchase cost
• Reduced Calibration costs
• Excellent accuracy and results in all measurement modes
• Lightweight, compact, housed in a rugged enclosure
• Ergonomically Designed with Protective Rubber Boot
• Full Colour Programmable Display
• Programmable calibration reminder
• Separate Probe and Separate Cable for convenience and lower replacement costs

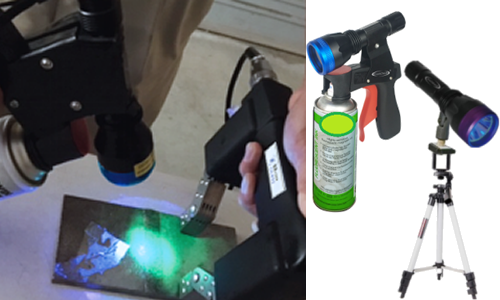

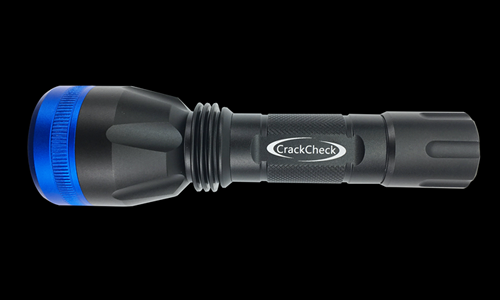

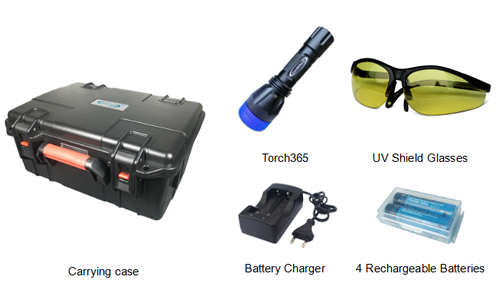

Features:

• Instant maximum output without pre-heating
• Rugged, extremely light and handy design
• Powered by one rechargeable lithium-ion battery with large capacity
• Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy duty
• The intensity of spotlight version Torch365/SS is 20,000uW/cm2 and floodlight version of 6,000uW/cm2 at 15 inches (38 cm)
• Flood and spot LED reflector are interchangeable
• Compatible with spray can holder and tripod
• Each lamp comes with a certificate of compliance for both output and wavelength measurements
• 100% solid state circuit ensuring working steadily in strong magnetic field
• Safe and pure UV-A spectrum in the range of 365-370nm with no UV-B and UV-C

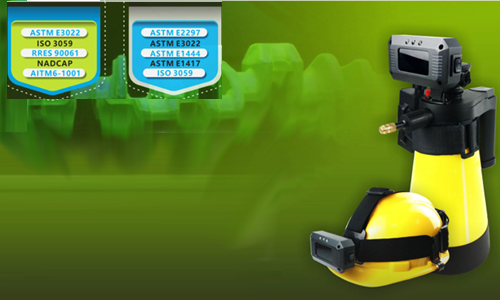

Features:

• 100% solid state circuit ensuring working steadily in strong magnetic field.
• Safe and pure UV-A spectrum in the range of 365-370nm with no UV-B and UV-C
• Switch function between UV light and White light.
• Powered by a rechargeable lithium-ion battery (included)
• Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.

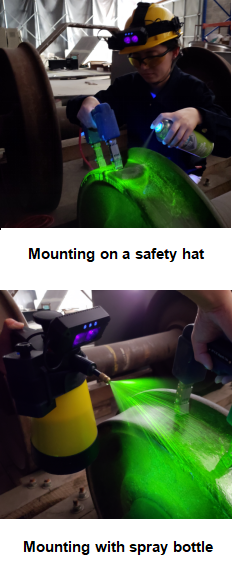

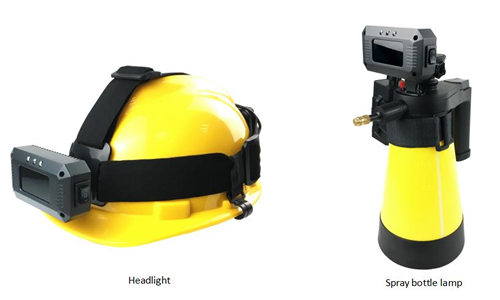

• Two models available: Headlight and spray bottle lamp.
• First choice for fluorescent inspection,leaking test ,biological polymerization and Oil detection.

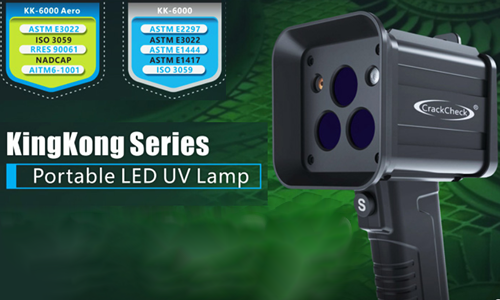

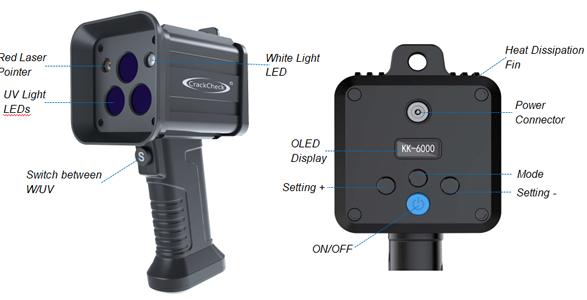

Features:

• Five-level UV intensity adjustable, which offers more intensity possibilities for specific applications
• The laser pointer makes it possible to locate crack location on big parts and pointing locations between operators
• White light and UV light are easily switchable
• OLED screen displaying battery status, lamp temperature, UV intensity level and charging indication
• Power Supply: Battery and Mains
• 100% solid state circuit ensuring working steadily in strong magnetic field
• Safe and pure UV-A spectrum in the range of 365-370nm with no UV-B and UV-C
